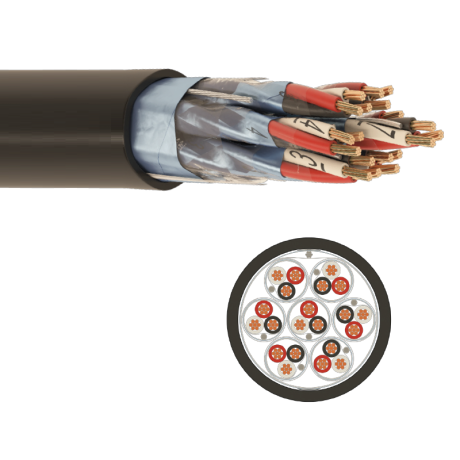

Cablu de instrumente RE-Y(St)Y-PiMF - TiMF
Application Cable Construction
· At instrumentation control and data processes, analog and digital signal transmission.
· In chemical and petrochemical industry.
· Powerplants.
· Outdoor and indoor places,dry, moist and wet places.
· Gas stations, water transportation systems
Cable Construction
1 - Conductor :
2 - Insulation :
3 - 1st Stranding :
4 - 1st Wrapping:
5 - Individual : Screen
6 - 2nd Stranding:
7 - 2nd Wrapping:
8 - Screen :
9 - Outer Jacket:
Stranded electrolytic copper conductor (Class 2) (IEC 60228, EN 60228, DIN VDE 0295)
PVC (BS EN 50290-2, VDE 0207 YI1), Black, White;
Number coded (BS 5308-2)
Pairs or triples stranded in layers.
Polyester tape
Tinned copper earthing wire, Al/PET tape
Screened pairs are stranded in layers.
Polyester tape
Tinned copper earthing wire, Al/PET tape
UV resistant PVC outer jacket. RAL 9005 (Black)
Technical Characteristics
| Cross Section |
Conductor Resistance Ω/km (20 °C) |
Insulation Resistance MΩ/km (20 °C) |
Mutual Capacitance pF/m |
Inductance Resistance Ratio nH/Ω |
Current Carrying Capacity A |
Operating Voltage V DC |
Test Voltage V (DC. 1 minute) Pair - Pair |
Test Voltage V (DC. 1 minute) Pair-Screen |
| 0.50 mm² |
36 |
100 |
160 |
25 |
6 |
300/500 |
2000 |
2000 |
| 075 mm² |
24.5 |
100 |
160 |
25 |
13 |
300/500 |
2000 |
2000 |
| 1.00 mm² |
18.1 |
100 |
160 |
25 |
16 |
300/500 |
2000 |
2000 |
| 1.30 mm² |
13.9 |
100 |
170 |
40 |
18 |
300/500 |
2000 |
2000 |
| 1.5 mm² |
12.1 |
100 |
170 |
40 |
20 |
300/500 |
2000 |
2000 |
| 2.5 mm² |
7.41 |
100 |
170 |
60 |
25 |
300/500 |
2000 |
2000 |
Mechanical Characteristics
| Bending Radius |
Temperature Range Operating |
| 7.5xD mm |
-30°C~+70°C |
RE-Y(St)Y-PiMF
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.2.2.2.0050.0.0002 |
2 |
0.5 |
9.1 |
33 |
90 |
100/500/1000 |
| 3.562.2.2.2.0050.0.0004 |
4 |
0.5 |
10.6 |
61 |
130 |
100/500/1000 |
| 3.562.2.2.2.0050.0.0008 |
8 |
0.5 |
14.1 |
117 |
259 |
100/500/1000 |
| 3.562.2.2.2.0050.0.0010 |
10 |
0.5 |
16.7 |
145 |
326 |
100/500/1000 |
| 3.562.2.2.2.0050.0.0012 |
12 |
0.5 |
17.2 |
173 |
373 |
100/500/1000 |
| 3.562.2.2.2.0050.0.0016 |
16 |
0.5 |
19.3 |
229 |
486 |
100/500/1000 |
| 3.562.2.2.2.0050.0.0020 |
20 |
0.5 |
21.4 |
284 |
586 |
100/500/1000 |
| 3.562.2.2.2.0050.0.0024 |
24 |
0.5 |
24.0 |
340 |
702 |
100/500/1000 |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.2.2.2.0075.0.0002 |
2 |
0.75 |
9.8 |
43 |
110 |
100/500/1000 |
| 3.562.2.2.2.0075.0.0004 |
4 |
0.75 |
11.6 |
81 |
173 |
100/500/1000 |
| 3.562.2.2.2.0075.0.0008 |
8 |
0.75 |
15.2 |
156 |
310 |
100/500/1000 |
| 3.562.2.2.2.0075.0.0010 |
10 |
0.75 |
18.1 |
194 |
390 |
100/500/1000 |
| 3.562.2.2.2.0075.0.0012 |
12 |
0.75 |
18.7 |
232 |
449 |
100/500/1000 |
| 3.562.2.2.2.0075.0.0016 |
16 |
0.75 |
21.1 |
307 |
590 |
100/500/1000 |
| 3.562.2.2.2.0075.0.0020 |
20 |
0.75 |
23.5 |
383 |
721 |
100/500/1000 |
| 3.562.2.2.2.0075.0.0024 |
24 |
0.75 |
26.3 |
459 |
863 |
100/500/1000 |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.2.2.2.0100.0.0002 |
2 |
1 |
10.5 |
53 |
125 |
100/500/1000 |
| 3.562.2.2.2.0100.0.0004 |
4 |
1 |
12.5 |
101 |
203 |
100/500/1000 |
| 3.562.2.2.2.0100.0.0008 |
8 |
1 |
16.7 |
197 |
395 |
100/500/1000 |
| 3.562.2.2.2.0100.0.0010 |
10 |
1 |
19.7 |
244 |
469 |
100/500/1000 |
| 3.562.2.2.2.0100.0.0012 |
12 |
1 |
20.4 |
292 |
542 |
100/500/1000 |
| 3.562.2.2.2.0100.0.0016 |
16 |
1 |
22.8 |
388 |
711 |
100/500/1000 |
| 3.562.2.2.2.0100.0.0020 |
20 |
1 |
25.6 |
484 |
870 |
100/500/1000 |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.2.2.2.0130.0.0002 |
2 |
1.3 |
11.5 |
64 |
153 |
100/500/1000 |
| 3.562.2.2.2.0130.0.0004 |
4 |
1.3 |
13.0 |
124 |
234 |
100/500/1000 |
| 3.562.2.2.2.0130.0.0008 |
8 |
1.3 |
17.8 |
243 |
435 |
100/500/1000 |
| 3.562.2.2.2.0130.0.0010 |
10 |
1.3 |
21.1 |
302 |
546 |
100/500/1000 |
| 3.562.2.2.2.0130.0.0012 |
12 |
1.3 |
22.0 |
362 |
642 |
100/500/1000 |
| 3.562.2.2.2.0130.0.0016 |
16 |
1.3 |
24.7 |
481 |
844 |
100/500/1000 |
| 3.562.2.2.2.0130.0.0020 |
20 |
1.3 |
27.6 |
600 |
1030 |
100/500/1000 |
| Part Number |
Pair Count |
Conductor Cross-section (mm²) |
Approx. Cable Diameter (mm) |
Copper Weight (kg/km) |
Approx. Weight (kg/km) |
Packing Lengths (m) |
| 3.562.2.2.2.0150.0.0002 |
2 |
1.5 |
11.8 |
71 |
165 |
100/500/1000 |
| 3.562.2.2.2.0150.0.0004 |
4 |
1.5 |
14.1 |
137 |
262 |
100/500/1000 |
| 3.562.2.2.2.0150.0.0008 |
8 |
1.5 |
18.4 |
268 |
476 |
100/500/1000 |
| 3.562.2.2.2.0150.0.0010 |
10 |
1.5 |
22.0 |
334 |
608 |
100/500/1000 |
| 3.562.2.2.2.0150.0.0012 |
12 |
1.5 |
22.8 |
400 |
704 |
100/500/1000 |
| 3.562.2.2.2.0150.0.0016 |
16 |
1.5 |
25.6 |
532 |
925 |
100/500/1000 |
| 3.562.2.2.2.0150.0.0020 |
20 |
1.5 |
28.7 |
663 |
1132 |
100/500/1000 |
